A systematic methodology for targeting the thermodynamic limit of pressure-retarded osmosis with non-zero driving force
点击次数:
影响因子:11.1
DOI码:10.1016/j.jclepro.2022.133905
发表刊物:Journal of Cleaner Production

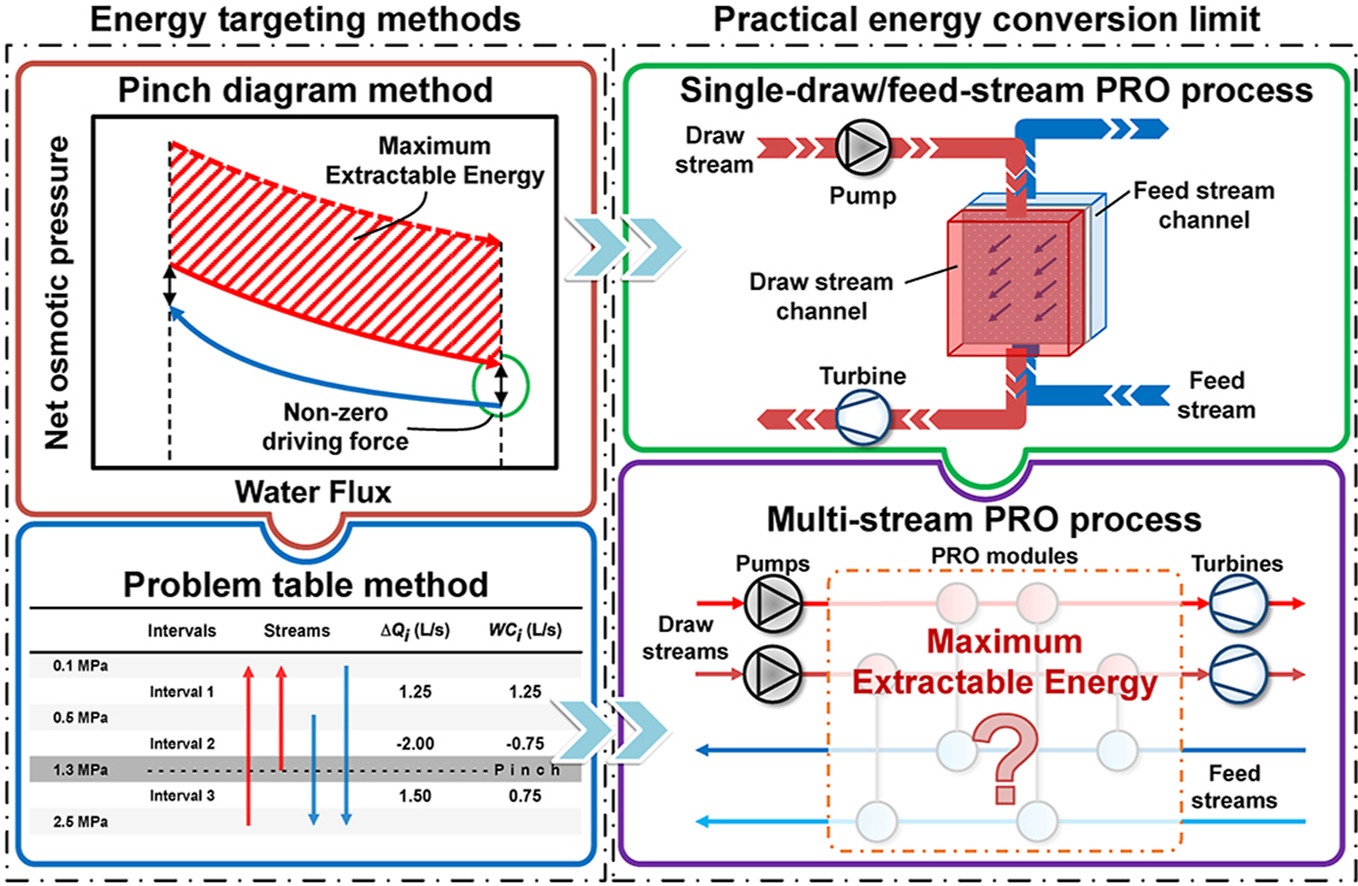

摘要:A thermodynamically oriented method is developed to identify the theoretical and practical limits of pressure-retarded osmosis (PRO) on converting salinity gradient power to mechanical energy under constant operating pressure with infinite and finite mass exchange area, respectively. It is proved that pinch analysis can be used to find the mass exchange limit of PRO, and according to which draw and feed streams can be plotted on a graph of net osmotic pressure - water exchange. Based on the graphical method, an expression of optimal pressure change is derived that achieves the maximum work extraction of a PRO process with single draw/feed stream. Moreover, problem table method is presented that serves as an analytical procedure to determine the maximum extractable work of the conceptualized multi-stream PRO process. Examples of both a PRO process with a draw stream (0.6 M NaCl seawater) and a feed stream feed (0.015 M NaCl river water) and a multi-stream PRO are included to illustrate the proposed methods. Results of the former example show that the counter-current design achieves 30.85% and 31.49% increase, respectively, in the maximum theoretical and practical work output, compared with the co-current design. The latter example shows that the problem table method produces a 20.47% increase in the work output, compared with the standalone design.
合写作者:Jiacheng Xu,Chi Wai Hui,Jianyong Chen,Zhi Yang,Ying Chen
第一作者:Yingzong Liang
论文类型:期刊论文
通讯作者:Xianglong Luo
卷号:375
页面范围:133905
是否译文:否
发表时间:2022-11-15
收录刊物:SCI
